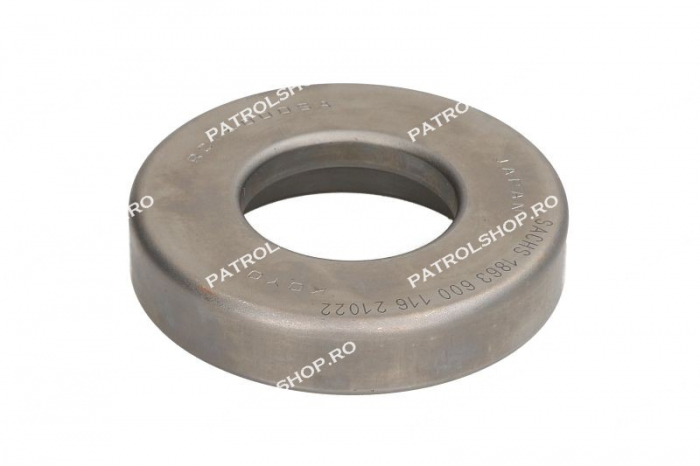

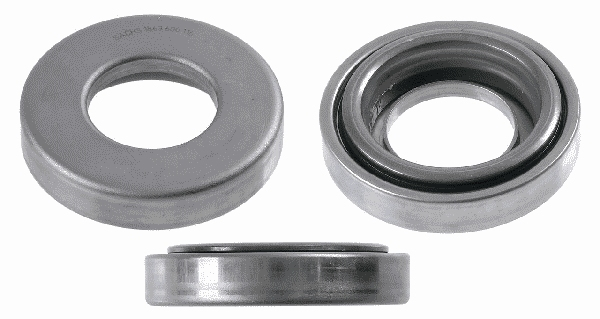

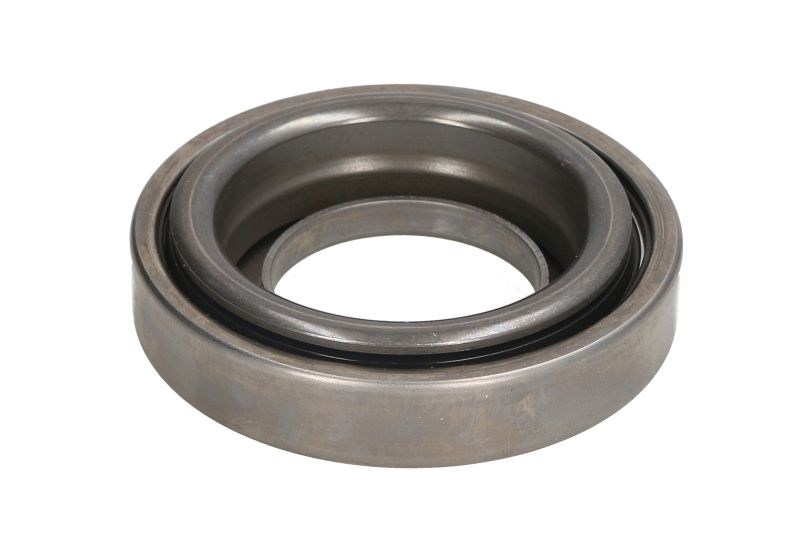

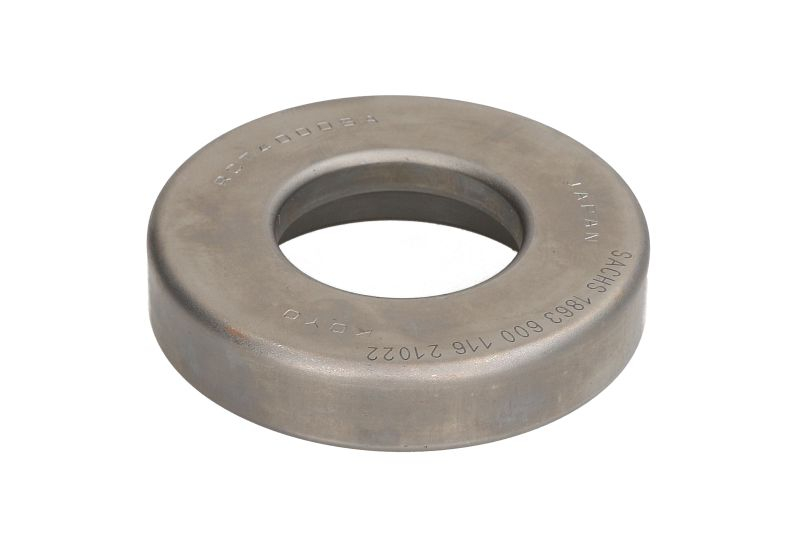

Clutch bearing PREMIUM Nissan Patrol Y60 Y61

SACHS Premium clutch release bearing for Nissan Patrol Y60 and Y61, designed for compatible 2.8 TD, 4.2D and 3.0 Di / CRD clutch configurations. A SACHS-branded replacement option with 40x81x19 mm dimensions.

Features

• Clutch release bearing manufactured by SACHS, a specialist in clutch and drivetrain components
• Transfers clutch release mechanism force to the pressure plate diaphragm
• Nissan Patrol Y61-type configuration, also suitable for compatible Nissan Patrol Y60 applications
• Premium alternative to the standard release bearing, with the same dimensions and mounting configuration

Specifications

• Manufacturer: SACHS
• Type: Clutch release bearing
• Inner diameter: 40 mm
• Outer diameter: 81 mm
• Height: 19 mm

Compatibility

• Nissan Patrol Y60 2.8 TD - RD28T, compatible configurations
• Nissan Patrol Y60 4.2D - TD42, compatible configurations
• Nissan Patrol Y61 2.8 TD - RD28Ti
• Nissan Patrol Y61 3.0 Di / CRD - ZD30

Installation

• Verify compatibility with the bearing carrier, clutch fork and pressure plate before installation.
• Inspect the bearing carrier, fork and clutch release mechanism contact points.
• Lubricate only the points specified by the applicable installation instructions, keeping clutch friction surfaces free from contamination.

Compatible Accessories

• OE Nissan clutch release-bearing carrier Patrol Y60/Y61 2.8 - required for certain Y60 configurations
• OE Nissan bearing carrier retaining spring Patrol Y60/Y61 2.8 - secures the bearing to the appropriate carrier
