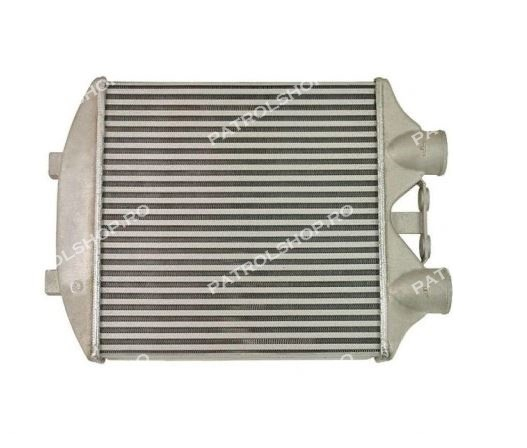

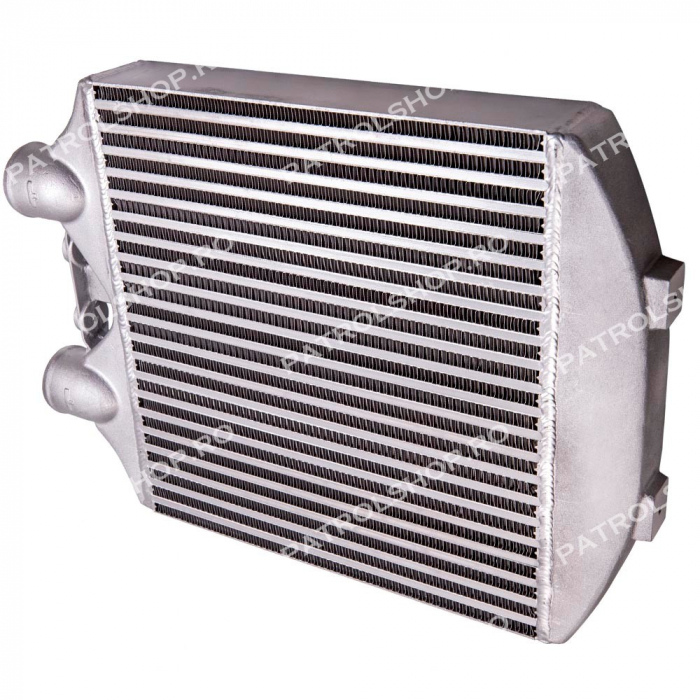

Universal Intercooler 370x370 mm Nissan Patrol Y60 Y61

Universal aluminium intercooler used in modified Nissan Patrol Y60 and Y61 builds, particularly tuned RD28T engines and BMW M57 engine conversions. Intended for custom charge-air cooling installations.

Specifications

• Type: Universal air-to-air intercooler
• Core dimensions: 370x370 mm
• Core thickness: 57 mm
• Overall dimensions: 535x385 mm
• Inlet/outlet diameter: 63 mm
• Material: Aluminium

Compatibility

Used in custom engine modification and conversion projects, including:

• Nissan Patrol Y60 2.8 TD - RD28T, modified configurations
• Nissan Patrol Y60 / Y61 with BMW M57 engine conversions (swaps)
• Other custom applications, depending on available space and turbocharging system configuration

Installation

• Requires fabrication of vehicle-specific mounting brackets
• Requires custom hoses, connections and charge-air piping, depending on the engine configuration and intercooler position
• Before installation, check available clearance around the radiator, cooling fans, crossmembers and other engine-bay components
• Ensure secure mounting and proper sealing of the pressurized intake system
