Heavy-duty clutch kit XTREME OUTBACK Nissan Patrol 160 / 260 3.3TD; Nissan Patrol 260 / Y60 4.2D / 4.2i

Stage 1 heavy-duty clutch kit with a sprung organic disc for classic Nissan Patrol applications with 3.3TD and 4.2 engines.

Specifications

• Maximum transferable torque: 440 Nm
• Clamp load: 830 kg (+30%)
• Clutch disc diameter: 275 mm
• Clutch disc spline count: 24
• Clutch disc spline diameter: 25.4 mm
• Flywheel Step: Flat
• Design: monodisc, disc organic amortizat
• Flywheel: nu este inclusă
• Stage: Stage 1
• Recommended use: stradă / off-road / tractare
• Weight: 12.86 kg

Compatibility

• Nissan Patrol 160/260 - 160: 3.3TD (SD33T); 260: 3.3TD (SD33T) / 4.2D (TD42) / 4.2i (TB42E)
• Nissan Patrol Y60 4.2D (TD42) / 4.2i (TB42E)

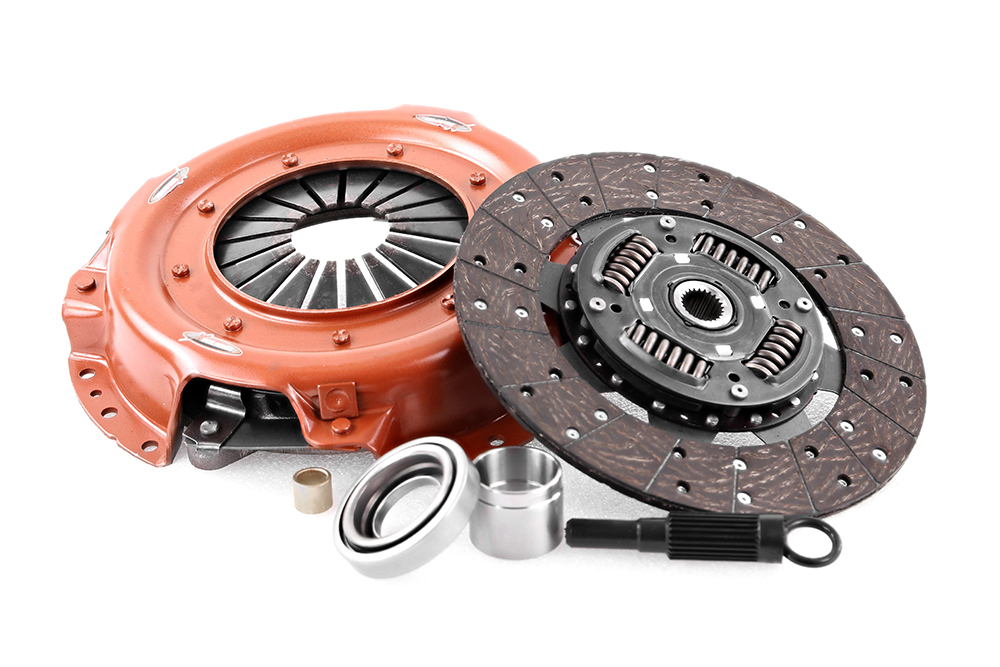

Kit contents

• 1x Pressure plate
• 1x Clutch disc
• 1x Release bearing
• 1x Alignment tool
• 1x Spigot bush
• 1x Bearing tool

Installation

• Technical bulletin TSB-165
• Technical bulletin TSB-269
• Technical bulletin TSB-NI05

About XTREME OUTBACK

XTREME OUTBACK is the heavy-duty range from Australian Clutch Services, developed for 4x4, commercial, off-road and high-load applications.
