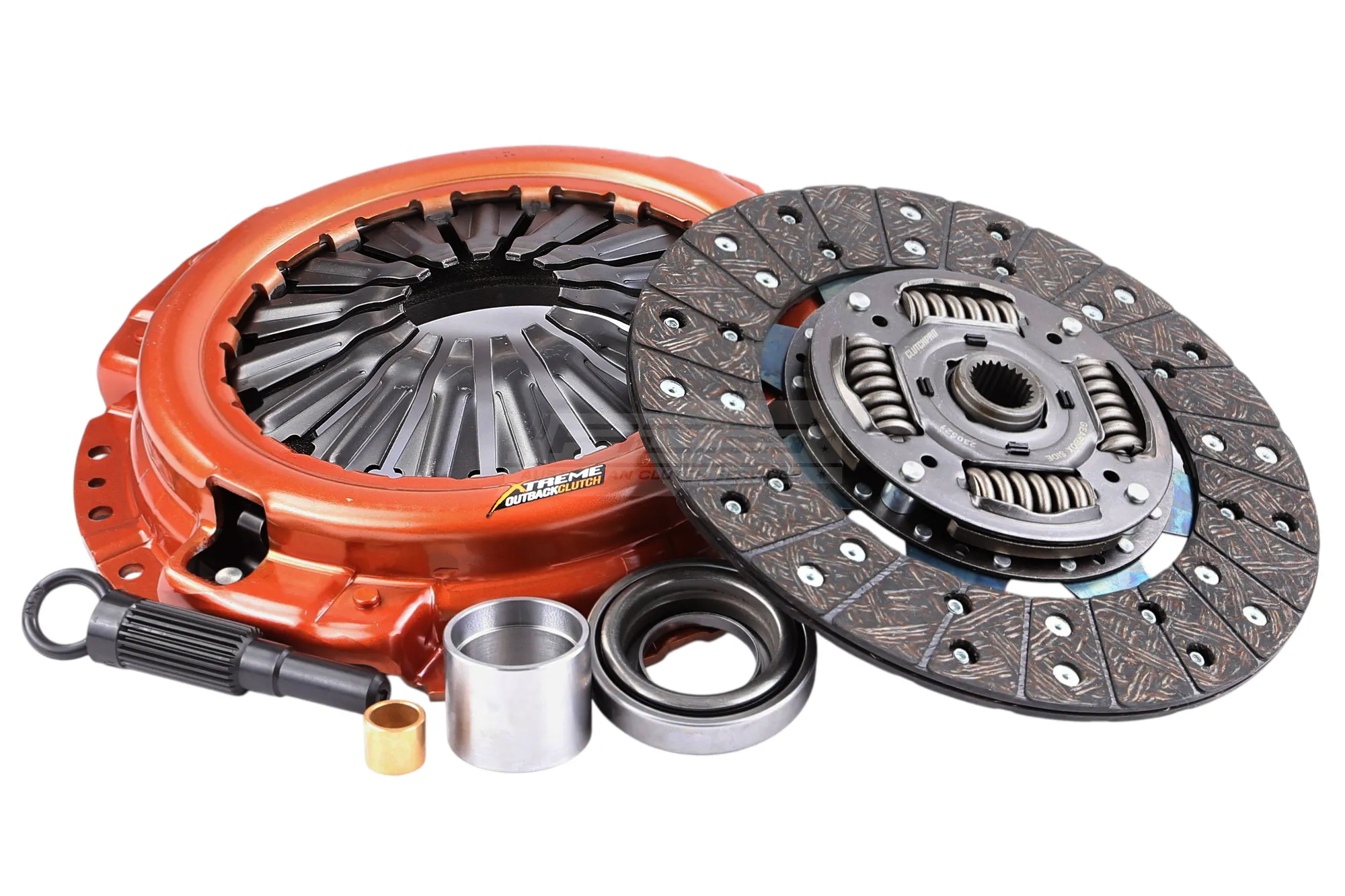

Heavy-duty replacement clutch kit XTREME OUTBACK for single-mass flywheel Nissan Patrol Y61 3.0 DI & CRD
XTREME OUTBACK![Heavy-duty replacement clutch kit XTREME OUTBACK for single-mass flywheel Nissan Patrol Y61 3.0 DI & CRD [1]](https://gomagcdn.ro/domains2/patrolshop.ro/files/product/original/kit-ambreiaj-de-schimb-heavy-duty-xtreme-outback-pentru-conversie-la-volanta-cu-masa-simpla-nissan-patrol-y61-terrano-ii-r20-3-0-di-08-2004-257948.webp "Heavy-duty replacement clutch kit XTREME OUTBACK for single-mass flywheel Nissan Patrol Y61 3.0 DI & CRD [1]")
Delivery date: Friday, 30.10.2026
Product Code:
KNI28009-1A
Do you need help?
+40730122006
- Description
Heavy-duty replacement clutch kit for Nissan Patrol Y61 3.0 ZD30DDTi previously converted to an ACS/Xtreme Outback single-mass flywheel.
Specifications
- Maximum transferable torque: 530 Nm
- Clamp load: 1100 kg (+40%)
- Clutch disc diameter: 275 mm
- Clutch disc spline count: 24
- Clutch disc spline diameter: 25.4 mm
- Flywheel Step: Flat
- Design: monodisc, disc organic amortizat
- Flywheel: nu este inclusă; pentru volantă cu masă simplă ACS
- Stage: Stage 1
- Recommended use: stradă / off-road / tractare
- Weight: 13.47 kg
Compatibility
- Nissan Patrol Y61 3.0 DI / CRD (ZD30DDTi)
Important: Service clutch for the single-mass conversion range standardised around the KNI28509 / KNI28509-1A family. Not intended for the OE dual-mass flywheel.
Kit contents
- 1x Pressure plate
- 1x Clutch disc
- 1x Release bearing
- 1x Alignment tool
- 1x Spigot bearing
- 1x Bearing tool
Installation
About XTREME OUTBACK
XTREME OUTBACK is the heavy-duty range from Australian Clutch Services, developed for 4x4, commercial, off-road and high-load applications.
Compatible with: Y61 3.0 ZD30
