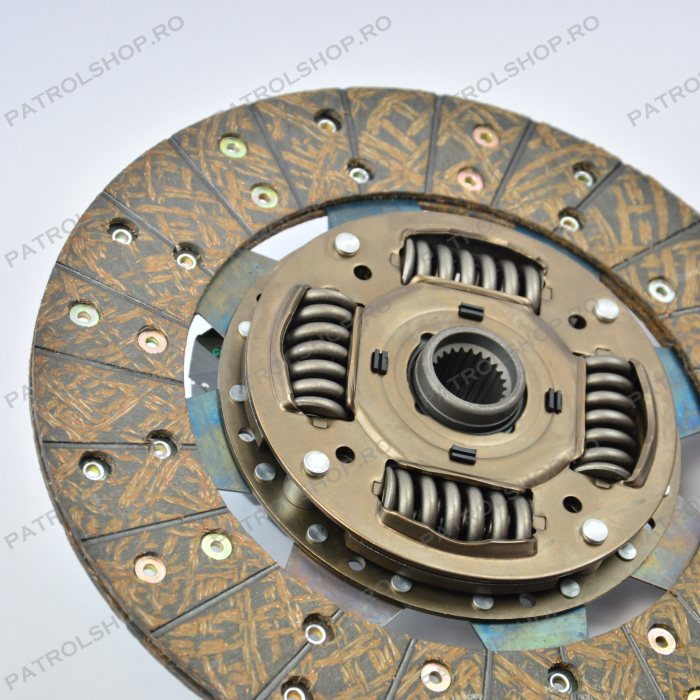

Reinforced clutch disc 275 mm Nissan

Reinforced 275 mm clutch disc for Nissan Patrol Y60 4.2D and Y61 3.0 Di / CRD, made from a new clutch disc professionally modified by replacing the original linings with high-performance friction material. The original thickness and mechanical construction of the base disc are preserved.

Features

• Friction material with high wear and thermal resistance
• Progressive engagement similar to a conventional clutch, based on Patrol Shop's practical experience
• Friction material used and tested by Patrol Shop for over 5 years in off-road, motorsport and modified vehicle applications

Specifications

• Nominal disc diameter: 275 mm
• Friction lining dimensions: 275x180 mm (outer/inner)
• Hub spline profile: 23x25.5 mm / 24 splines
• Hub type: Sprung, with torsional damper
• Friction material: Woven composite reinforced with aramid fibers
• Maximum continuous material operating temperature: 250°C
• Maximum intermittent material operating temperature: 350°C
• Disc thickness: Original thickness of the base disc, retained after relining

Compatibility

• Nissan Patrol Y60 4.2D - TD42, with a compatible clutch configuration
• Nissan Patrol Y61 3.0 Di - ZD30
• Nissan Patrol Y61 3.0 CRD - ZD30

Compatibility depends on the flywheel and pressure plate configuration, which must be suitable for the 275 mm clutch disc.

Installation

• Verify compatibility with the flywheel, pressure plate and gearbox input shaft
• Inspect the flywheel friction surface and check its flatness before installation
• Follow the applicable clutch assembly installation requirements and keep the friction linings free from oil and grease contamination

Compatible Accessories

• HD reinforced 275 mm Nissan pressure plate - for compatible clutch configurations
• Heavy-Duty clutch kit Nissan Patrol Y61 3.0 - complete kit with reinforced disc and pressure plate
