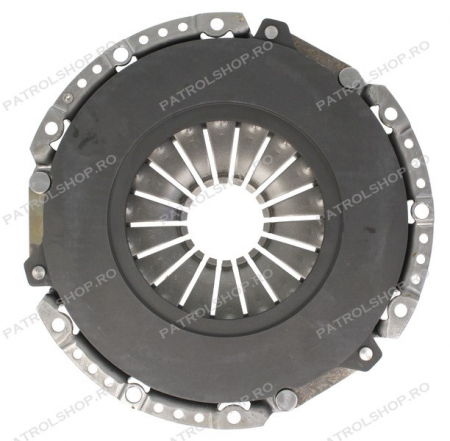

Reinforced clutch pressure plate Sachs Performance BMW 3.0d M57

SACHS Performance reinforced 240 mm clutch pressure plate with increased clamping force, designed for compatible BMW clutch configurations and M57 engine conversion projects.

Features

• Increased clamping force compared with a standard pressure plate
• Improved torque transmission capacity
• Reduced release travel for faster gear changes
• Hand-assembled by the manufacturer
• Designed for tuning, motorsport and demanding operating conditions

Specifications

• Type: Reinforced clutch pressure plate
• Clutch diameter: 240 mm
• SACHS size code: M240
• Transmittable torque with organic disc: 540 Nm
• Transmittable torque with sintered disc: 780 Nm

Compatibility

• BMW M57 - compatible 240 mm flywheel and clutch configurations

Installation

• The clutch disc and flywheel must be selected according to the complete transmission configuration
