Adapter gearbox BMW ZF 8HP-70X/75X / 6HP-26X/28X - transfer case Nissan Patrol Y60 Y61

Adapter BMW / Jaguar ZF 8HP-70X / 75X / 50Z / 6HP-26X / 28X – Nissan Patrol Y60 / Y61 Transfer Case

The BMW / Jaguar ZF adapter for Nissan Patrol Y60 / Y61 is an advanced solution designed for high-performance builds, allowing you to combine the precision of modern ZF automatic gearboxes with the legendary durability of the Patrol drivetrain.

This system enables the connection of ZF 8HP and 6HP automatic transmissions to the Nissan Patrol Y60 / Y61 transfer case, improving torque control, drivetrain efficiency, and overall vehicle performance in demanding conditions.

Built for advanced performance builds

Ideal for engine swaps, off-road, overlanding, and high-performance applications, this adapter enables a modern drivetrain setup with significantly improved drivability and efficiency.

Improved drivetrain performance

ZF automatic gearboxes provide fast, smooth shifting, optimized gear ratios, and superior torque management both on-road and off-road.

High-quality construction

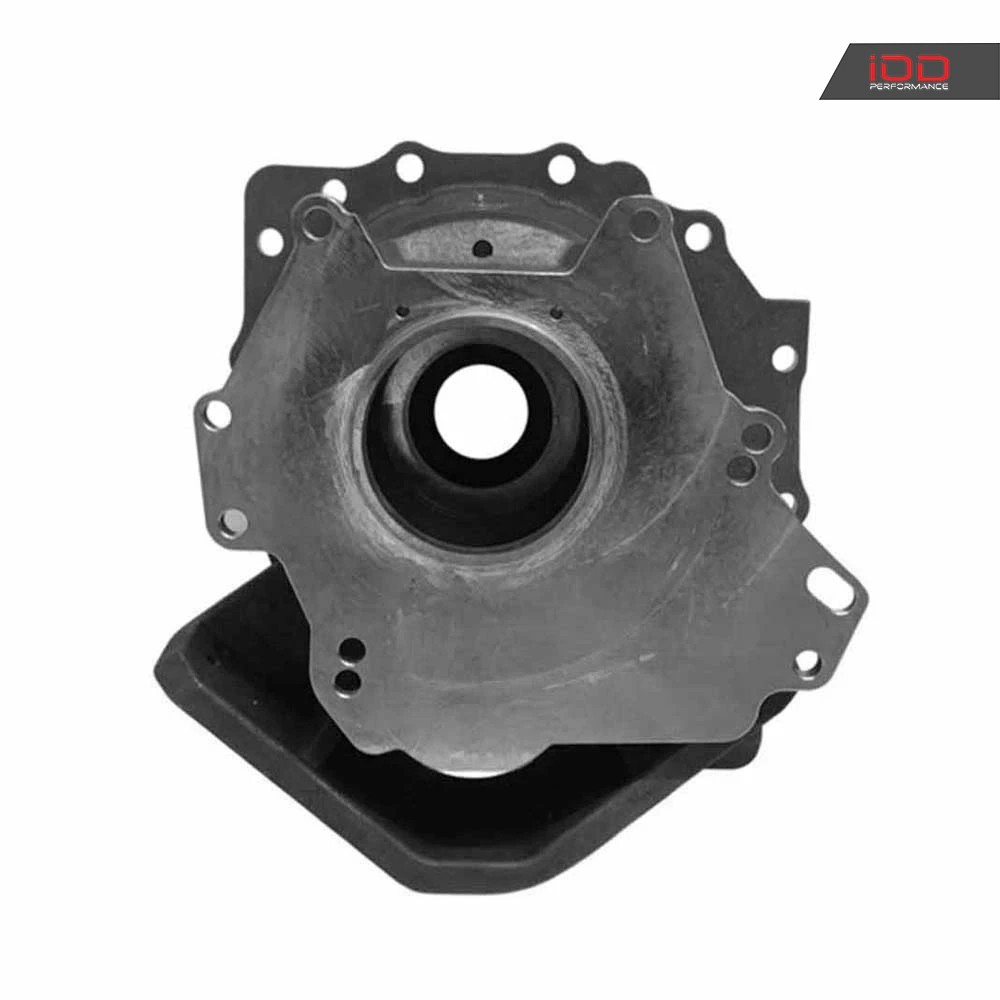

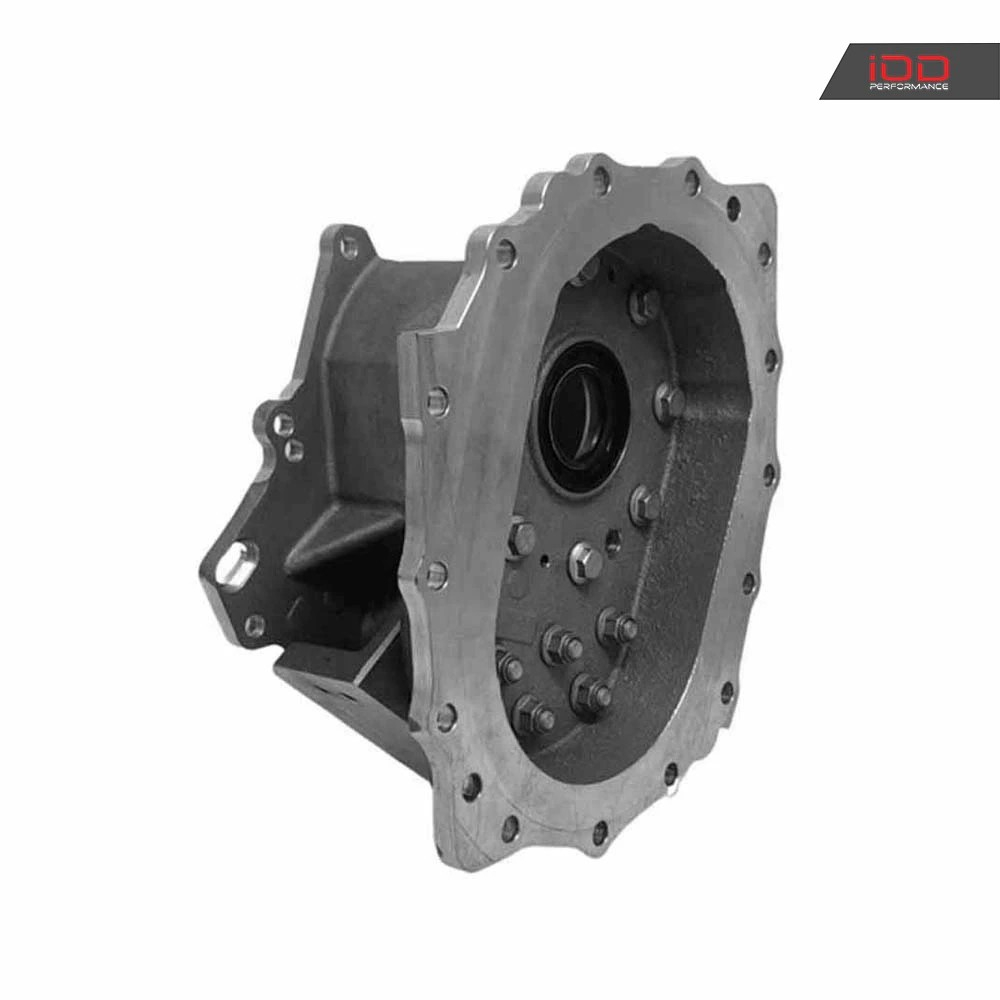

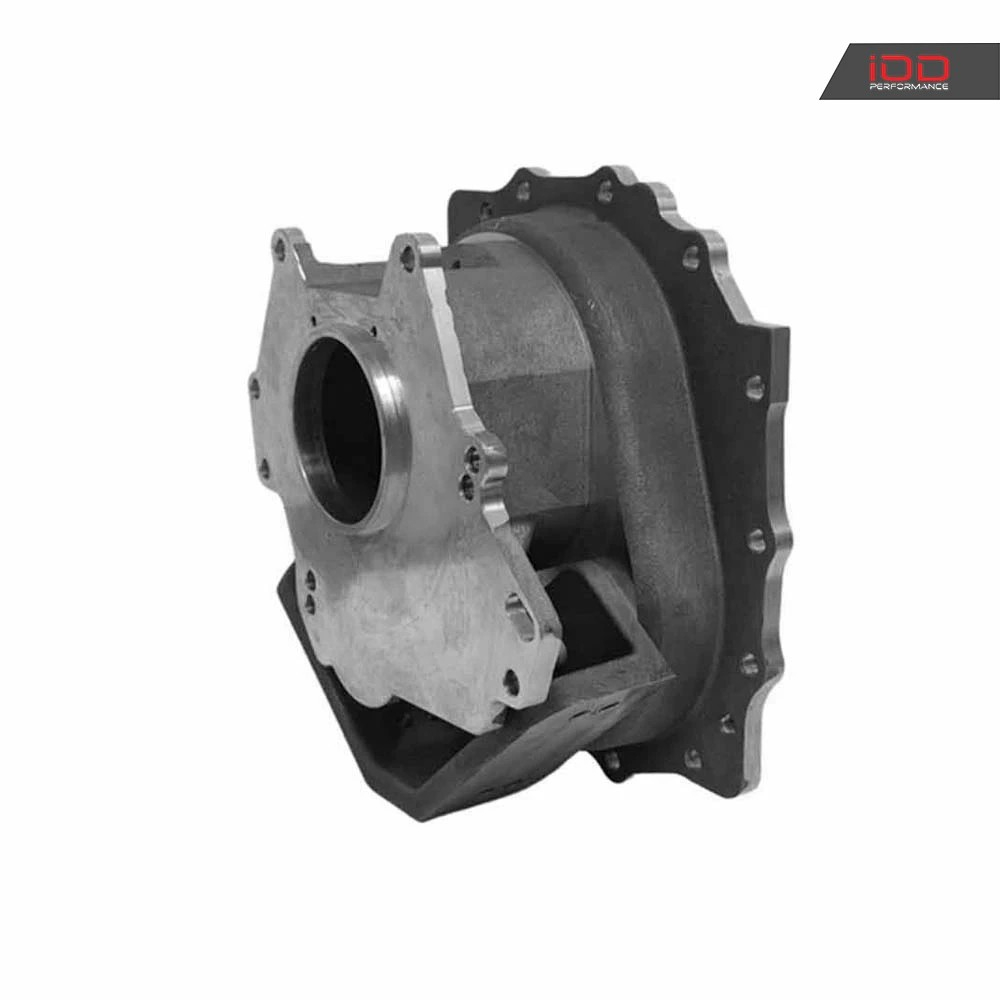

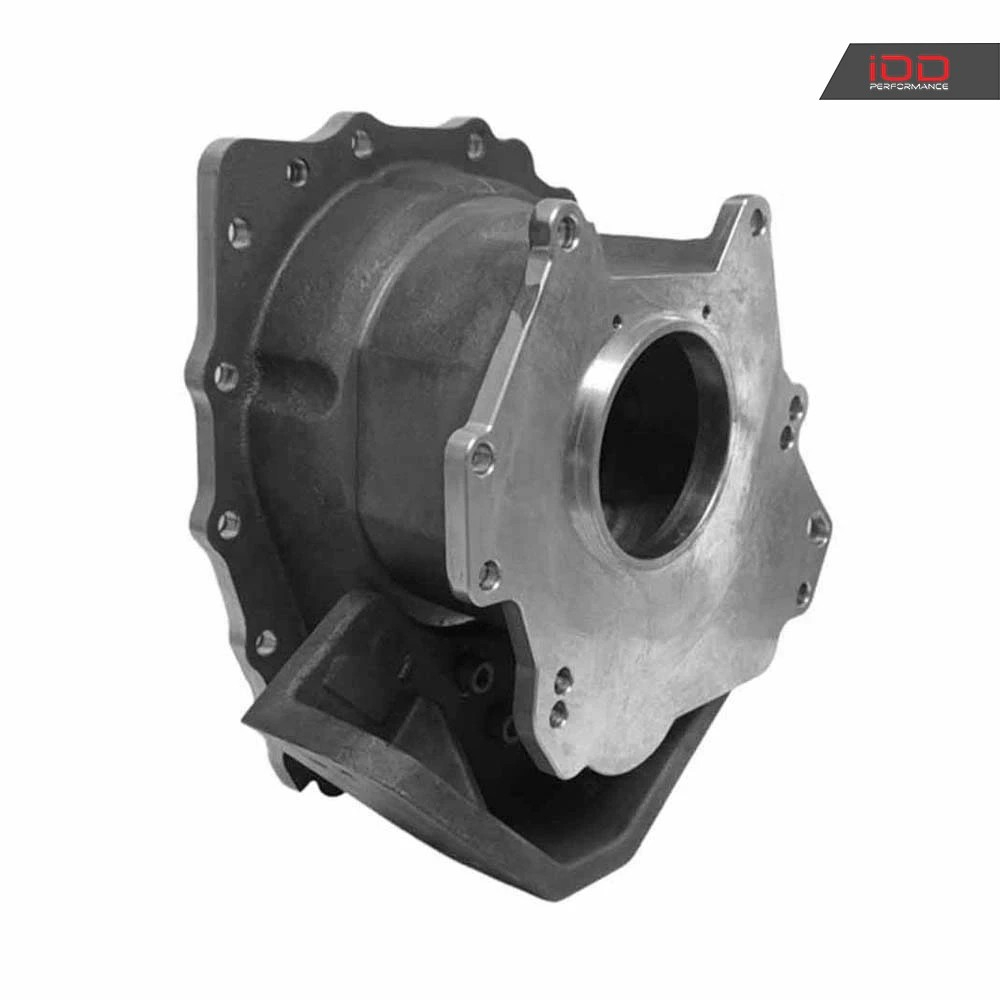

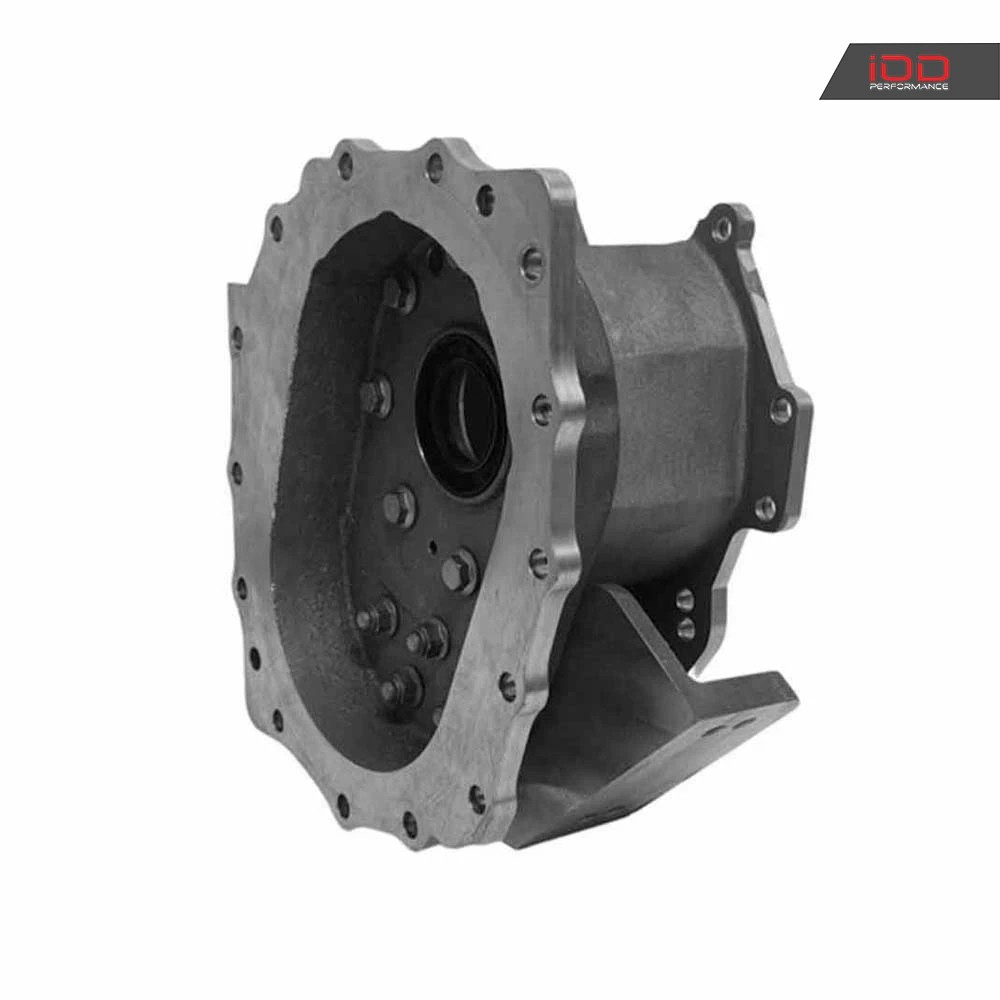

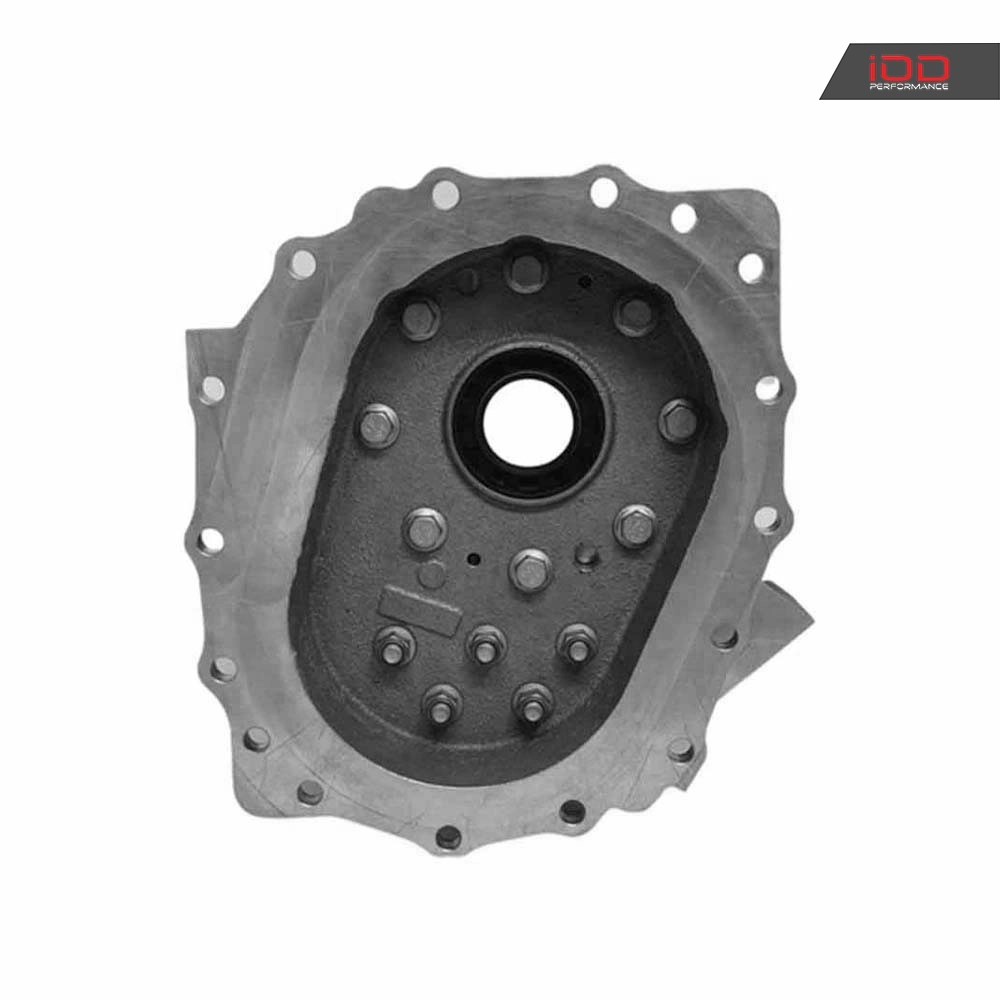

The adapter is manufactured from high-quality cast aluminum, while the connecting shaft is made from heat-treated chromoly steel, ensuring strength, durability, and reliability under heavy loads.

Optimized installation

Designed to work with the factory Nissan Patrol gearbox crossmember and mounts, the adapter simplifies the installation process.

The compact design also allows:

• Higher engine positioning without modifying the firewall
• Easier exhaust routing within the chassis frame
• Reduced overall drivetrain weight
• Easy installation and removal

Key features

• Connects ZF 8HP and 6HP transmissions to Patrol Y60 / Y61 transfer case
• Improved drivetrain efficiency and control
• High-quality cast aluminum construction
• Heat-treated chromoly steel connecting shaft
• Compatible with factory Patrol mounts
• Ideal for tuning and off-road / performance builds
• Compact and lightweight design

Technical specifications

• Compatibility:
  • Nissan Patrol Y60 2.8 or Nissan Patrol Y61 2.8 / 3.0 transfer case
  • BMW ZF 8HP-70X gearbox
  • BMW ZF 8HP-75X gearbox
  • BMW ZF 6HP-26X gearbox
  • BMW ZF 6HP-28X gearbox
  • Jaguar ZF 8HP-70X gearbox
• Material: cast aluminum
• Adapter thickness: 142 mm
• Transfer case position: shifted approx. 25 mm rearward from original position
• Note: driveshaft length modifications may be required depending on suspension setup
• Not compatible with ZF 8HP gearboxes from BMW N63 engines

Package contents

• Adapter (3 parts)

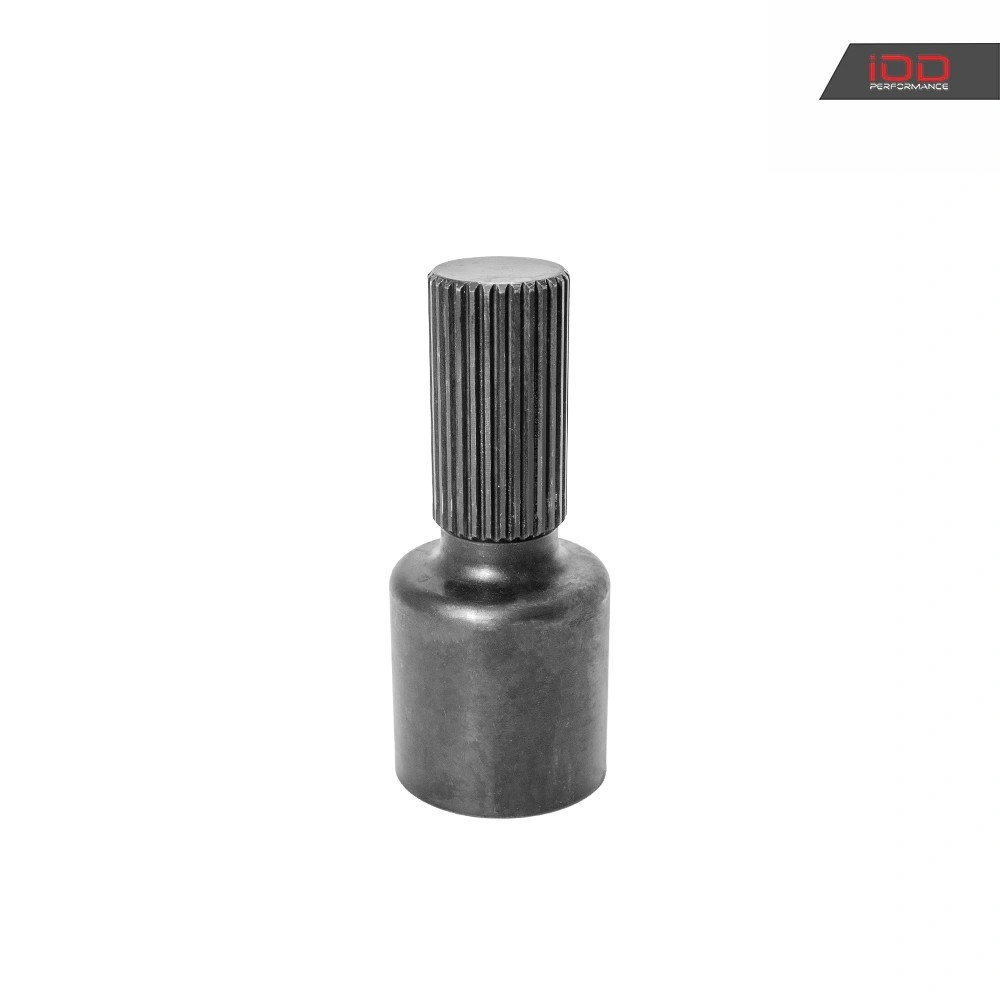

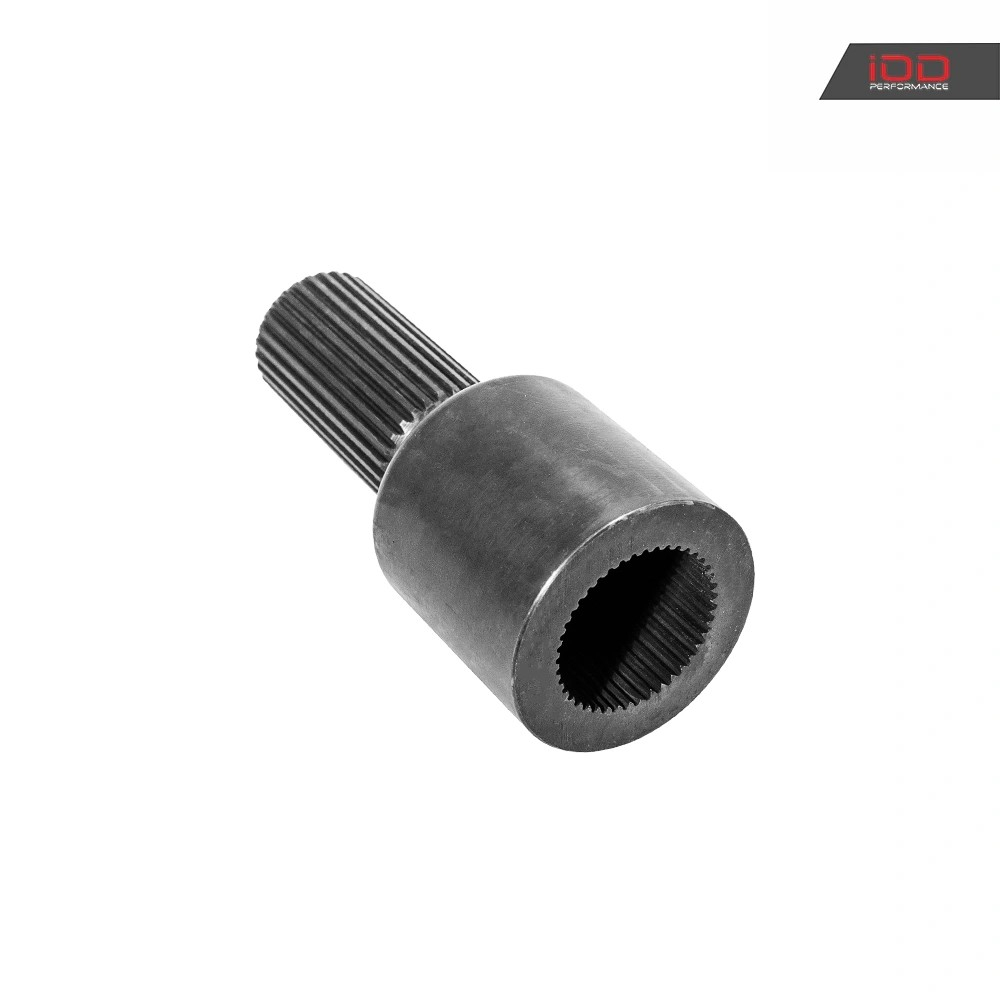

• Connecting shaft
• Connecting shaft seal
• Complete mounting hardware set

Designed for enthusiasts pushing their builds to the next level, this adapter delivers performance, control, and reliability in the most demanding conditions.
