Engine adapter plate Mercedes OM605 OM606 - gearbox Nissan Patrol 3.0

Gearbox adapter plate designed to connect Mercedes-Benz OM605 / OM606 engines to Nissan Patrol Y61 ZD30 / TD42 manual gearboxes. Intended for Mercedes-Benz engine conversions retaining the Nissan Patrol transmission.

Features

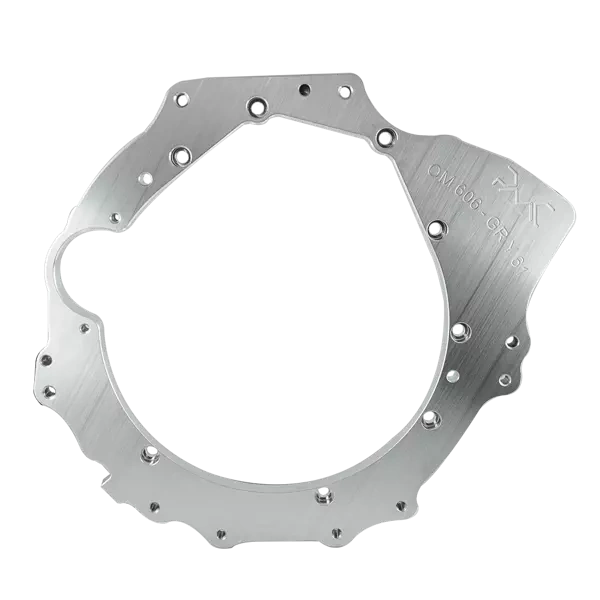

• CNC-machined aluminium gearbox adapter plate
• Designed to provide the mechanical connection between the engine and gearbox
• Locating dowels for alignment of the engine and transmission assembly

Specifications

• Material: Aluminium
• Adapter thickness: 20 mm
• Transmission type: Manual

Compatibility

Mercedes-Benz OM605 engines:

• OM605.910 - 2.5D
• OM605.911 - 2.5D
• OM605.912 - 2.5D
• OM605.960 - 2.5TD
• OM605.962 - 2.5TD

Mercedes-Benz OM606 engines:

• OM606.910 - 3.0D
• OM606.912 - 3.0D
• OM606.961 - 3.0TD
• OM606.962 - 3.0TD
• OM606.964 - 3.0TD

Nissan Patrol manual gearboxes:

• Nissan Patrol Y61 3.0 Di (ZD30DDTi) - ZD30 gearbox
• Nissan Patrol Y61 4.2D (TD42) - TD42 gearbox

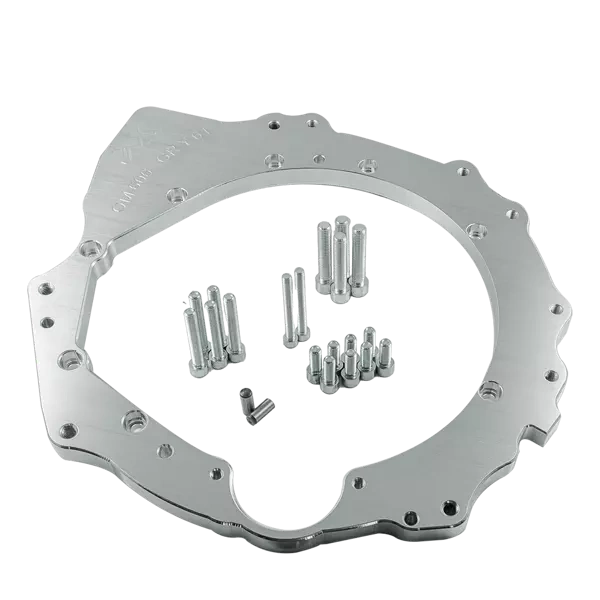

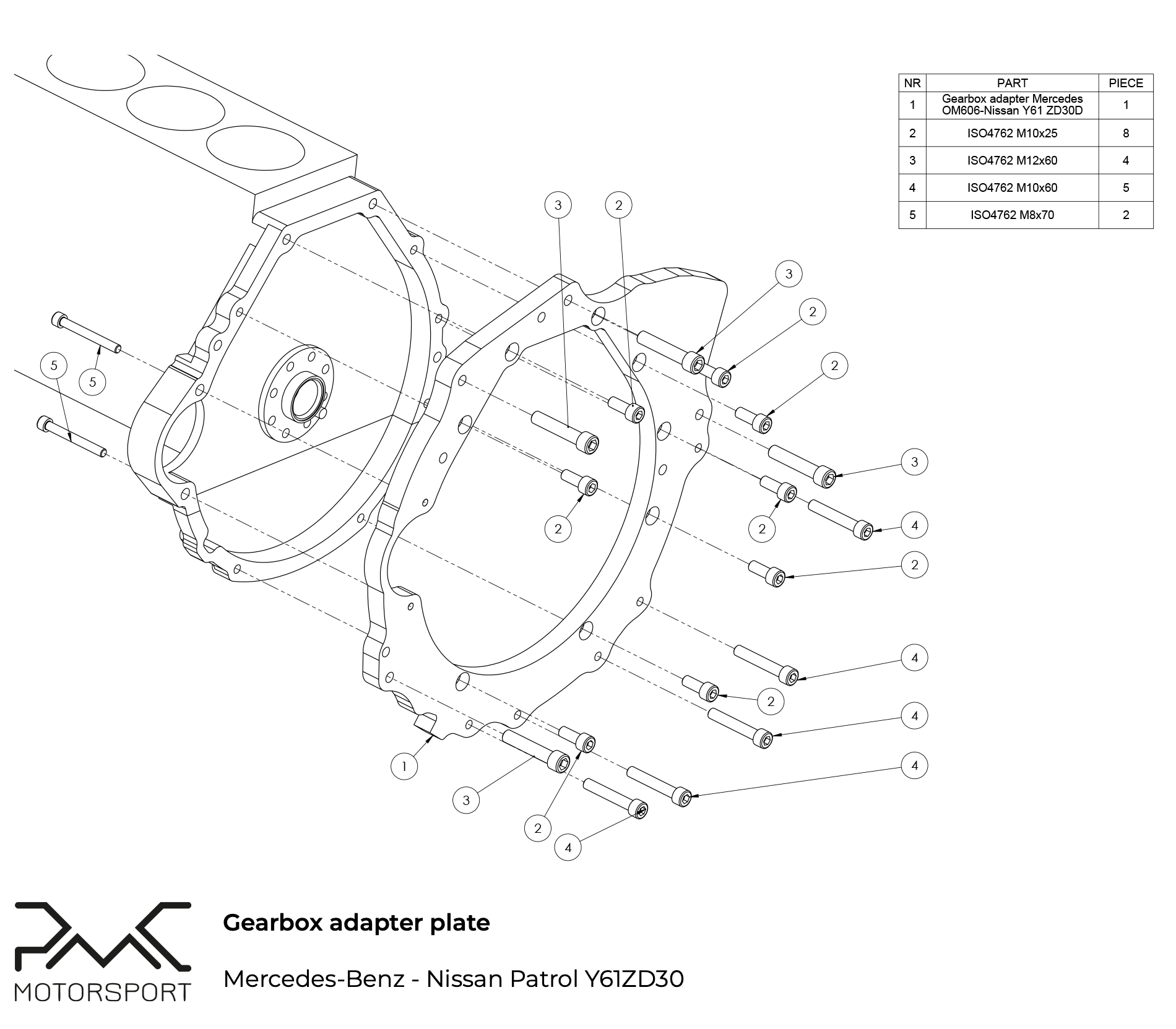

Package Contents

• 1x Aluminium gearbox adapter plate
• Gearbox adapter mounting bolts
• Locating dowel pins

Installation

• Requires a custom flywheel designed for the Mercedes-Benz OM605 / OM606 engine and Nissan Patrol Y61 gearbox combination, matching the engine used
• Depending on the vehicle, modifications to engine and gearbox mounts, bushings, firewall, transmission tunnel or driveshaft length may be required

Compatible Accessories

• Single-mass flywheel PMC MOTORSPORT Mercedes-Benz OM605 - Nissan Patrol Y61 ZD30 / TD42, for OM605 engine conversions
