Single mass flywheel BMW 3.0d M57 - 5.7 kg

Name: Single mass flywheel BMW 3.0d M57 - 5.7 kg
Brand: PMC MOTORSPORT
SKU: K024057-M5
Price: 377.19 EUR
Availability: OutOfStock

PMC MOTORSPORT

377,19 EUR

Attention: This product is intended for off-road / sporting / recreational use and is not sold as a product approved for use on public roads. Use on public roads is at the customer's own risk and responsibility.

Unavailable at the moment

Delivery date: momentan neconfirmată

Stock alert

Product Code: K024057-M5 Do you need help? +40730122006

Add to wishlist

Description

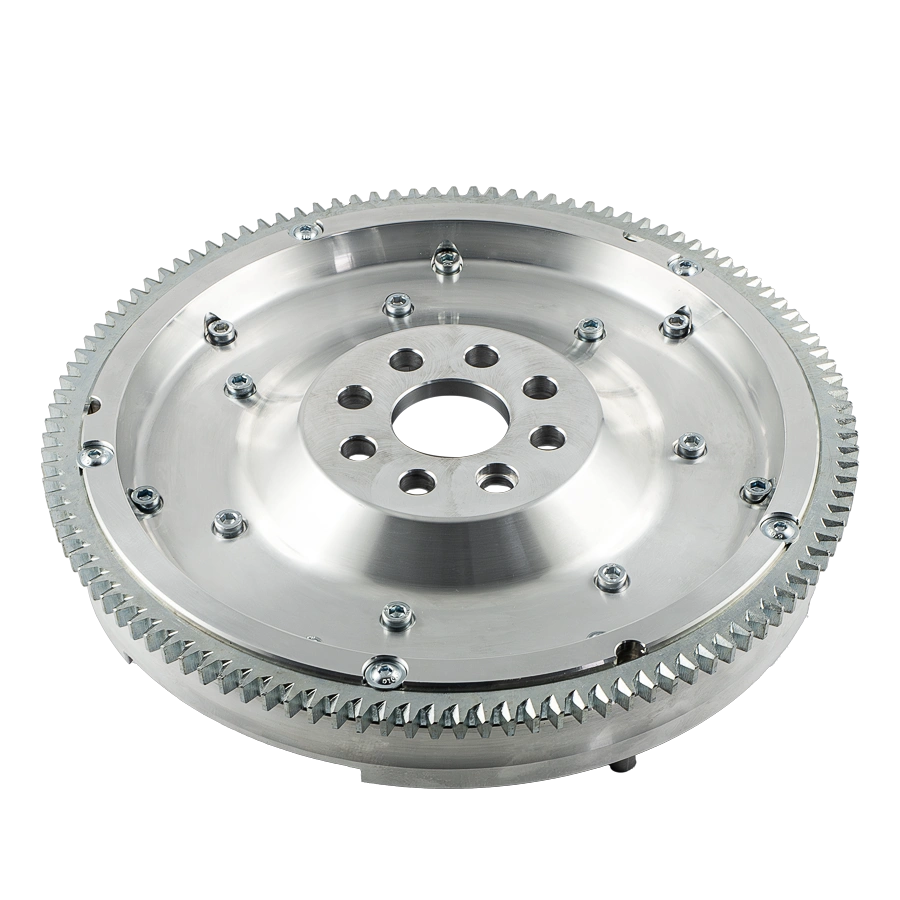

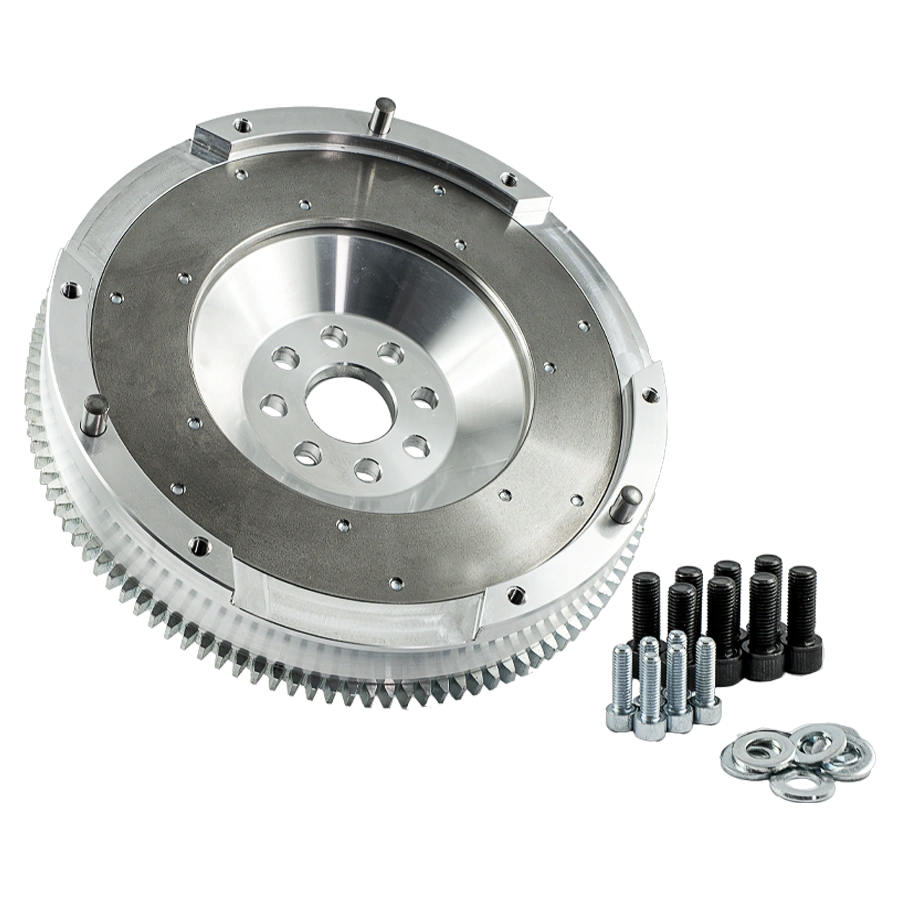

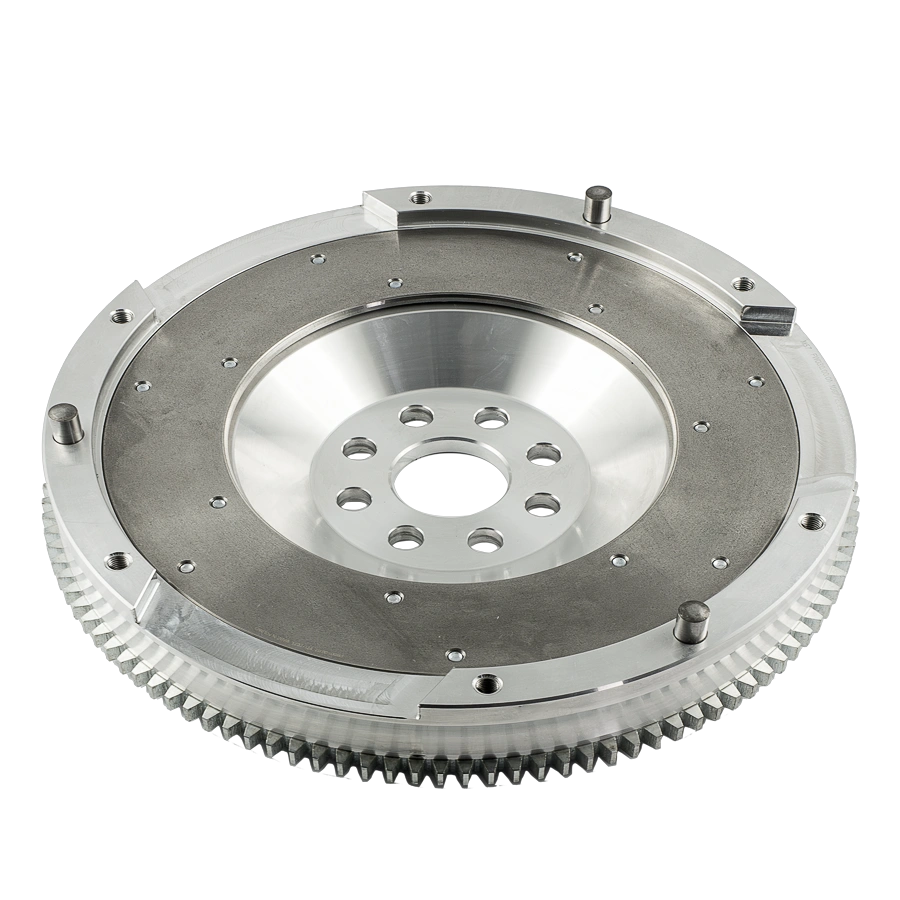

Lightweight aluminium rigid single-mass flywheel designed for BMW M50 / M52 / M54 / M57 (first generation) / S50 / S52 / S54 engines. Its reduced rotational inertia allows faster changes in engine speed.

Features

Rigid construction without the damping system of a dual-mass flywheel
Replaceable steel friction surface
Galvanized starter ring gear for the original starter motor
Balanced by the manufacturer before shipping

Specifications

Flywheel type: Rigid, single-mass
Material: Aluminium with steel friction surface
Weight: 5.70 kg
Clutch diameter: 240 mm
Ring gear outer diameter: 290 mm
Replaceable friction surface: Yes

Compatibility

BMW diesel engines:

M57D25 (first generation) - 163 HP
M57D30 / 306D1 (first generation) - 184 HP / 193 HP

BMW petrol engines:

M50B20 / M50TUB20 / M50B25 / M50TUB25
M52B20 / M52B25 / M52B28 / M52TUB20 / M52TUB25 / M52TUB28
M54B22 / M54B25 / M54B30
S50B30 / S50B32
S52B32
S54B32

Important: This flywheel has a 290 mm ring gear outer diameter and is intended for first-generation M57 engines. It is not compatible with M57N / M57N2 engines requiring a flywheel with a 310 mm ring gear. Verify the engine configuration and ring gear diameter before ordering.

Installation

Clutch pressure plate: BMW M57, 240 mm
Clutch disc: 240 mm, with splines matching the gearbox input shaft
Starter motor: Original, matching the compatible configuration
Flywheel mounting bolts: M12x1.5x30, grade 12.9, included
Flywheel bolt tightening torque: 120 Nm with thread-locking adhesive, as specified by the manufacturer
Clutch pressure plate bolt tightening torque: 23 Nm, as specified by the manufacturer
When using a second-hand or modified clutch assembly, the manufacturer recommends rebalancing the complete assembly

Important: A single-mass flywheel does not provide the torsional damping of the original dual-mass flywheel. Depending on the engine, clutch and gearbox configuration, mechanical gearbox noise or drivetrain vibrations may occur at idle. These characteristics can be associated with a single-mass flywheel conversion and do not automatically indicate a product defect.
