Heavy-duty clutch kit Nissan Patrol Y61 3.0

Heavy-duty 275 mm clutch kit for Nissan Patrol Y61 with 3.0 Di / CRD engines (ZD30), combining a reinforced pressure plate with a new clutch disc professionally relined with high-performance friction material. Intended for off-road use, towing and modified engine applications.

Features

• Increased clamping force compared with the original Nissan ZD30 pressure plate
• Friction material with high wear and thermal resistance
• Progressive engagement similar to a conventional clutch, based on Patrol Shop's practical experience
• Friction material used and tested by Patrol Shop for over 5 years in off-road, motorsport and modified vehicle applications

Specifications

• Clutch diameter: 275 mm
• Disc dimensions: 275x180 mm
• Friction material: Woven composite reinforced with aramid fibers
• Maximum continuous material operating temperature: 250°C
• Maximum intermittent material operating temperature: 350°C
• Disc thickness: Original thickness of the 275 mm base disc, retained after relining
• Estimated clamping force: approx. 900 kgf
• Estimated increase: approx. 10% over the reference original Nissan ZD30 pressure plate (800 kgf)

Compatibility

• Nissan Patrol Y61 3.0 Di - ZD30
• Nissan Patrol Y61 3.0 CRD - ZD30

Compatible with the corresponding original dual-mass flywheel (DMF), as well as certain Xtreme Outback single-mass flywheel (SMF) conversions, subject to verification of mounting geometry and flywheel condition.

Package Contents

• HD reinforced 275 mm pressure plate

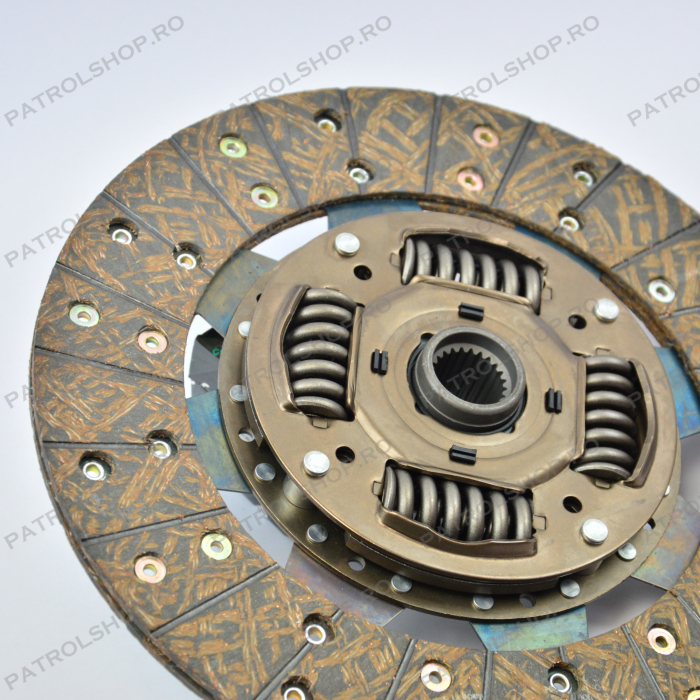

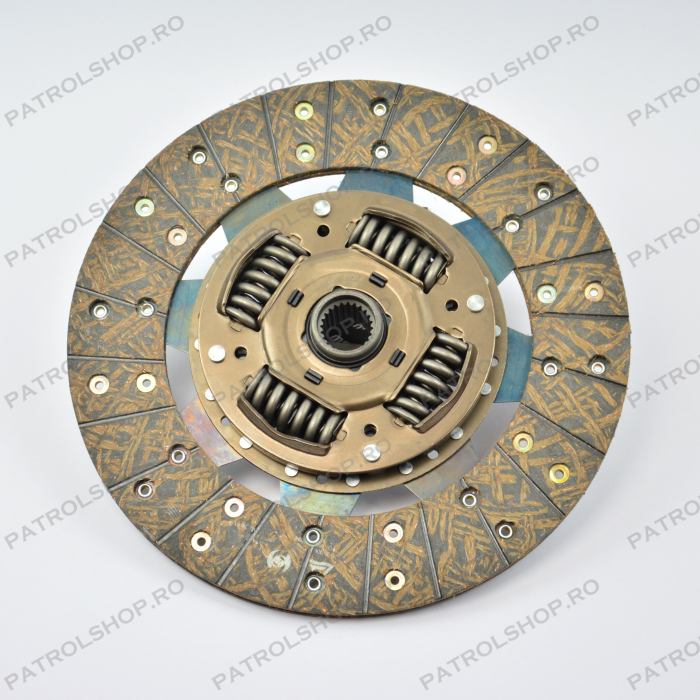

• Reinforced 275x180 mm Nissan clutch disc

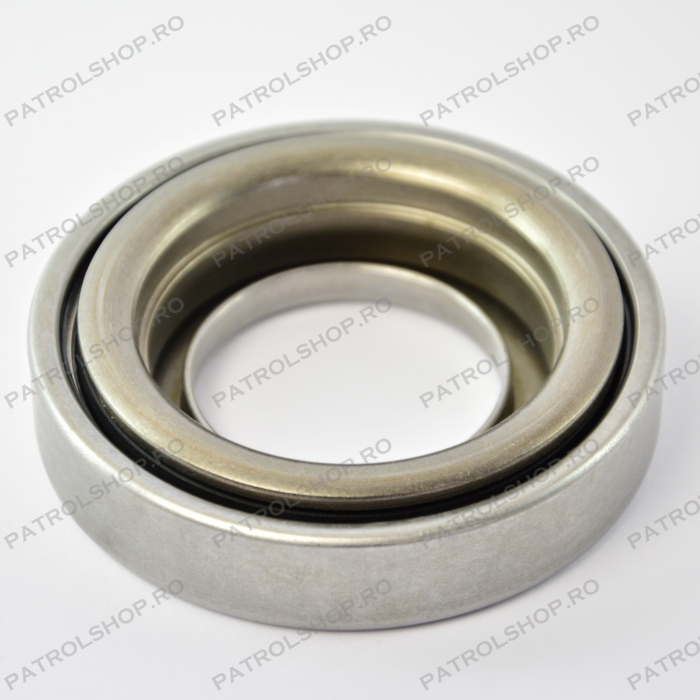

• Nissan Patrol Y61-type clutch release bearing
• OE Nissan crankshaft pilot bushing
• SACHS lubricant for the clutch release mechanism

Installation

• Verify compatibility with the flywheel, clutch disc and release mechanism before installation
• The flywheel contact surface must be flat, uniform and free from wear steps
• For single-mass flywheels (SMF), professional inspection and resurfacing are recommended where necessary, while preserving correct installation geometry and dimensions
• For dual-mass flywheels (DMF), inspect the contact surface and internal mechanism; some workshops perform light resurfacing, but this may conflict with manufacturer instructions
• Apply the supplied lubricant only to the appropriate release mechanism contact points, avoiding contamination of friction surfaces

Notes

• The approximately 900 kgf and +10% figures are conservative estimates based on Patrol Shop comparative measurements, not manufacturer-certified specifications
• The stated temperatures apply to the friction material and are not certified operating limits for the complete clutch assembly
