Attention: This product is intended for off-road / sporting / recreational use and is not sold as a product approved for use on public roads. Use on public roads is at the customer's own risk and responsibility.
Delivery date: momentan neconfirmată
Product Code:
F0Y61-M57
Do you need help?
+40730122006
- Description
Gearbox adapter plate designed to connect first-generation BMW M57 engines and the 204 HP M57N variant to Nissan Patrol Y61 ZD30 / TD42 gearboxes. Intended for BMW engine conversions retaining the Nissan Patrol transmission.
Features
- CNC-machined aluminium gearbox adapter plate
- Designed to provide the mechanical connection between the BMW M57 engine and Nissan Patrol gearbox
Specifications
- Material: Aluminium
- Adapter thickness: 25 mm
- Transmission type: Manual / automatic, depending on configuration
Compatibility
BMW M57 engines:
- M57D25 - 163 HP
- M57D30 / 306D1 - 184 HP / 193 HP
BMW M57N engines:
- M57TUD30 / 306D2 EU3 - 204 HP
Nissan Patrol gearboxes:
- Nissan Patrol Y61 3.0 Di (ZD30DDTi) - ZD30 manual gearbox
- Nissan Patrol Y61 4.2D (TD42) - TD42 manual gearbox
- Nissan Patrol Y61 3.0 Di (ZD30DDTi) - RE4R03A automatic gearbox
Important: This adapter is compatible only with first-generation BMW M57 flywheels featuring a 290 mm outer ring gear diameter. Flywheels with a 310 mm ring gear are not compatible, as they do not fit the adapter configuration and the starter motor cannot correctly engage the ring gear. Verify the ring gear diameter before ordering.
Important: M57N compatibility is limited to the manufacturer-listed 204 HP 306D2 EU3 variant. Compatibility with other M57N / M57N2 variants is not confirmed.

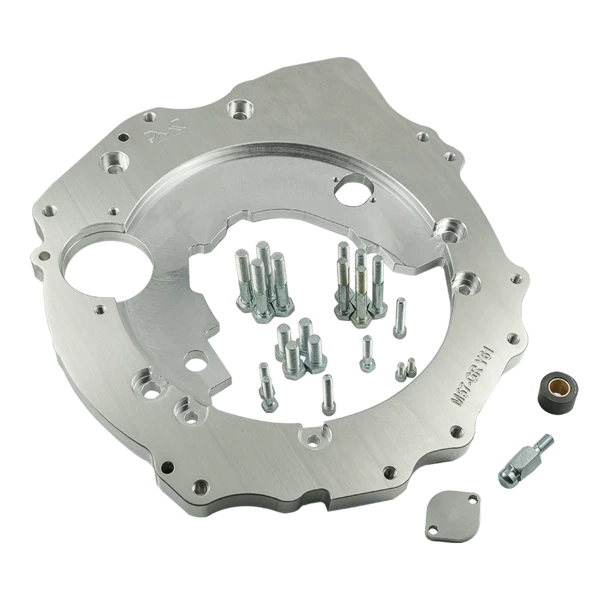

Package Contents
- 1x Aluminium gearbox adapter plate
- Gearbox adapter mounting bolts
- 1x Clutch fork pivot pin PMC MOTORSPORT AS081.00.03
- 1x Crankshaft support bearing PMC MOTORSPORT AS081.00.06

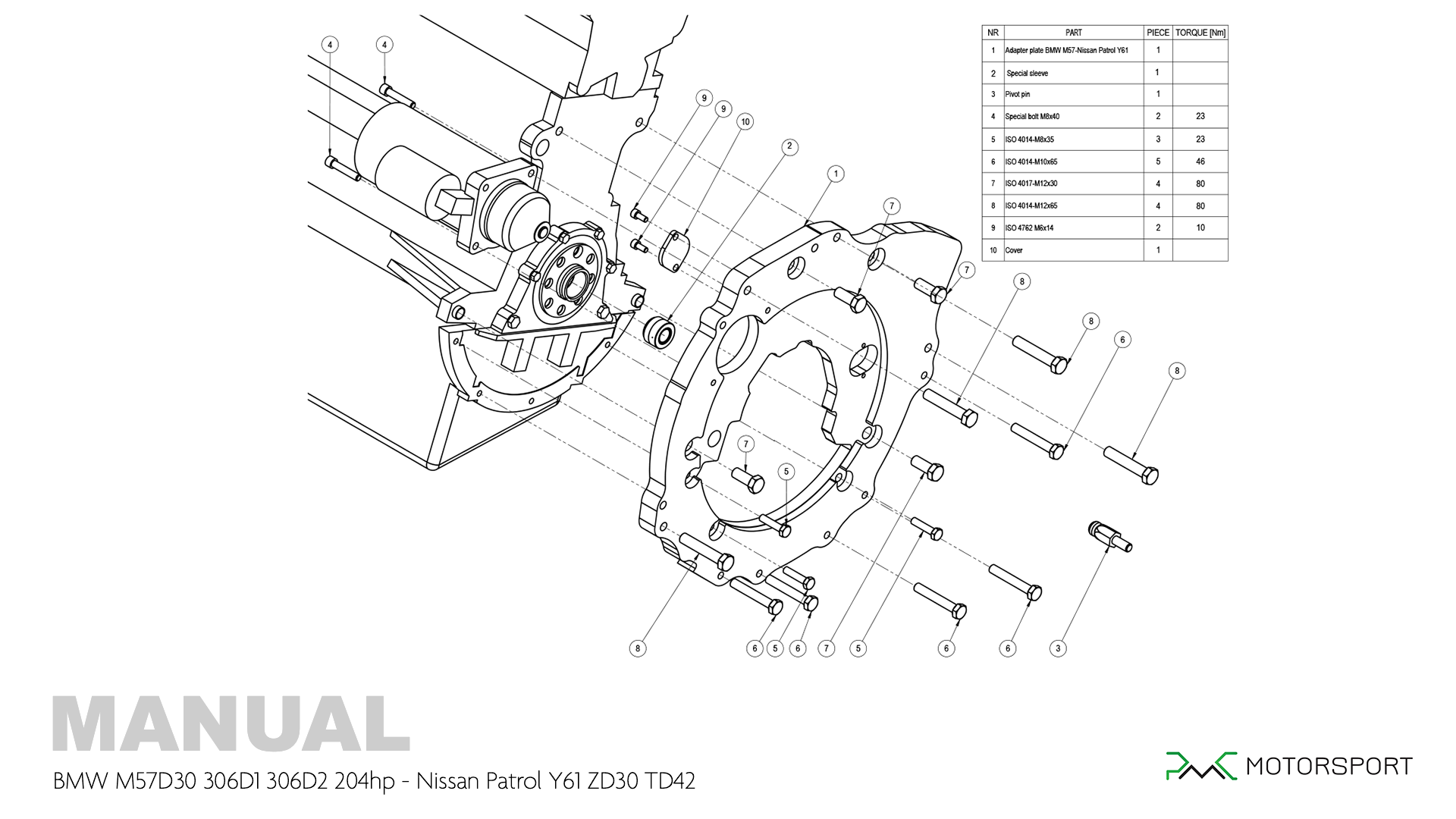

Installation
- Flywheel and clutch configuration must be selected according to the engine and gearbox combination, respecting the ring gear diameter restriction
- For the Nissan Patrol Y61 ZD30 RE4R03A automatic transmission, an additional PMC MOTORSPORT torque converter adapter is required
- Depending on the vehicle, modifications to engine and gearbox mounts, firewall, transmission tunnel or driveshaft length may be required
Important: This adapter is not a complete conversion kit. The flywheel, clutch disc, pressure plate and release bearing must be selected for the complete transmission configuration. The components recommended below are alternatives for different setups and are not all required together.
Important: Intended for motorsport and track use only. The manufacturer specifies installation by professionals experienced in engine and transmission conversions, using appropriate workshop equipment.
Compatible Accessories
Flywheel
- SACHS dual-mass flywheel BMW 3.0d M57 - 290 mm ring gear
Clutch Discs
- Solid Kevlar clutch disc 240x160 mm Nissan
- Kevlar clutch disc 240x160 mm Nissan
- Ceramic clutch disc Nissan 240 mm
Pressure Plates
- Reinforced clutch pressure plate BMW 3.0d M57
- SACHS Performance reinforced clutch pressure plate BMW 3.0d M57
Clutch Release Bearings
