Engine adapter plate BMW 3.0d M57 - gearbox Nissan Patrol 2.8

Name: Engine adapter plate BMW 3.0d M57 - gearbox Nissan Patrol 2.8
Brand: PMC MOTORSPORT
SKU: F0Y60-M57
Price: 410.07 EUR
Availability: InStock

PMC MOTORSPORT

410,07 EUR

Attention: This product is intended for off-road / sporting / recreational use and is not sold as a product approved for use on public roads. Use on public roads is at the customer's own risk and responsibility.

2 In stock

Delivery date: momentan neconfirmată

Stock limit

Add to cart

Product Code: F0Y60-M57 Do you need help? +40730122006

Add to wishlist

Description

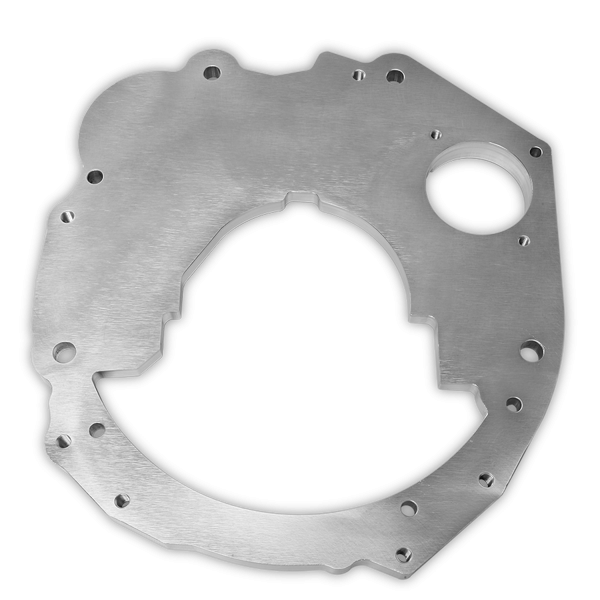

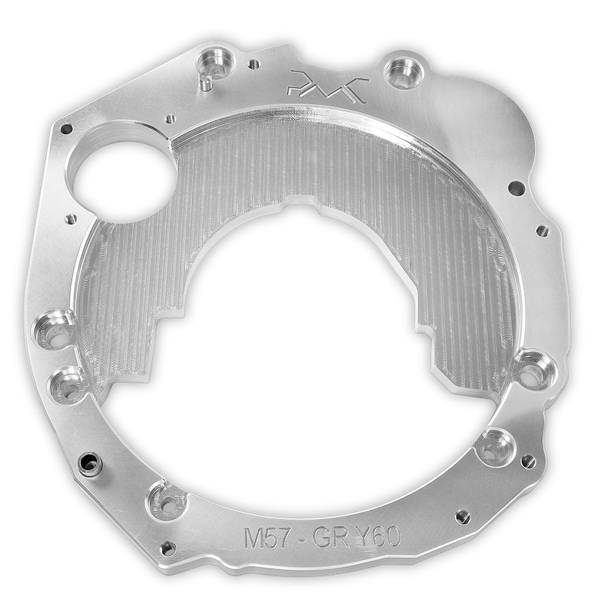

Gearbox adapter plate designed to connect first-generation BMW M57 engines and the 204 HP M57N variant to the Nissan Patrol Y60 RD28 2.8TD manual gearbox.

Features

CNC-machined aluminium gearbox adapter plate
Designed to provide the mechanical connection between the BMW M57 engine and Nissan RD28 gearbox
Locating dowels for alignment of the engine and transmission assembly

Specifications

Material: Aluminium
Adapter thickness: 25 mm
Transmission type: Manual

Compatibility

BMW M57 engines:

M57D25 - 163 HP
M57D30 / 306D1 - 184 HP / 193 HP

BMW M57N engines:

M57TUD30 / 306D2 EU3 - 204 HP

Nissan Patrol manual gearboxes:

Nissan Patrol Y60 2.8TD (RD28T) - RD28 gearbox

Important: This configuration requires first-generation BMW M57 flywheels featuring a 290 mm outer ring gear diameter. Flywheels with a 310 mm ring gear are not compatible with this adapter configuration. Verify the ring gear diameter and starter engagement position before ordering.

Important: M57N compatibility is limited to the manufacturer-listed 204 HP 306D2 EU3 variant. Compatibility with other M57N / M57N2 variants is not confirmed.

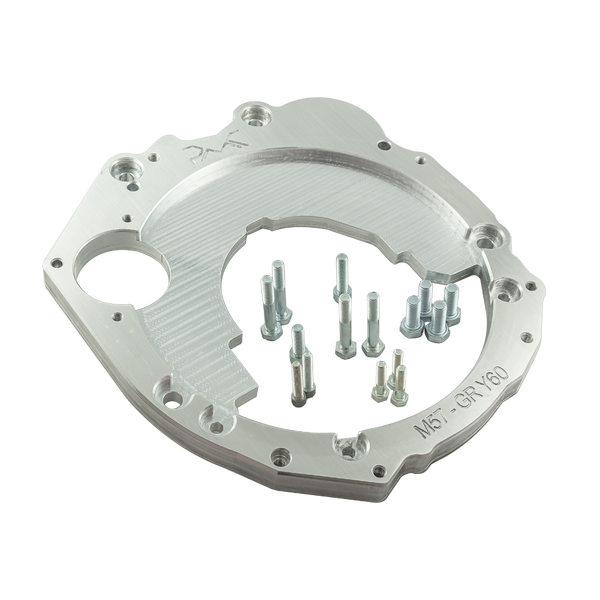

Package Contents

1x Aluminium gearbox adapter plate
Gearbox adapter mounting bolts
Locating dowel pins

Installation

Flywheel and clutch configuration must be selected according to the engine and gearbox combination, respecting the ring gear diameter restriction
Depending on the vehicle, modifications to engine and gearbox mounts, firewall, transmission tunnel or driveshaft length may be required

Important: This adapter is not a complete conversion kit. The flywheel, clutch disc, pressure plate and release bearing must be selected for the complete transmission configuration. The components recommended below are alternatives for different setups and are not all required together.

Important: Intended for motorsport and track use only. The manufacturer specifies installation by professionals experienced in engine and transmission conversions, using appropriate workshop equipment.

Compatible Accessories

Flywheel

SACHS dual-mass flywheel BMW 3.0d M57 - 290 mm ring gear

Clutch Discs

Pressure Plates
