Engine adapter plate BMW 3.0d M57N - gearbox Nissan Patrol 3.0

Name: Engine adapter plate BMW 3.0d M57N - gearbox Nissan Patrol 3.0
Brand: PMC MOTORSPORT
SKU: F0Y61-M57N
Price: 410.56 EUR
Availability: InStock

PMC MOTORSPORT

410,56 EUR

Attention: This product is intended for off-road / sporting / recreational use and is not sold as a product approved for use on public roads. Use on public roads is at the customer's own risk and responsibility.

3 In stock

Delivery date: momentan neconfirmată

Stock limit

Add to cart

Product Code: F0Y61-M57N Do you need help? +40730122006

Add to wishlist

Description

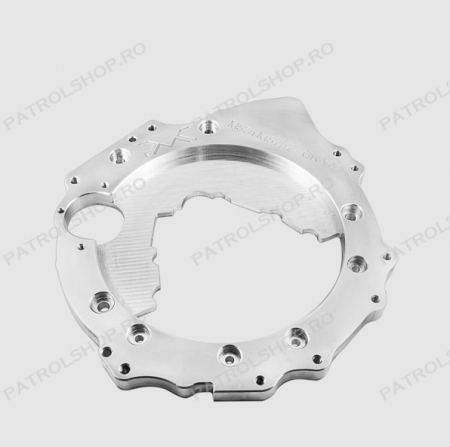

Gearbox adapter plate designed to connect BMW M57N / M57N2 engines to Nissan Patrol Y61 ZD30 / TD42 gearboxes. Intended for BMW engine conversions retaining the Nissan Patrol transmission.

Features

CNC-machined aluminium gearbox adapter plate
Designed to provide the mechanical connection between the BMW M57N / M57N2 engine and Nissan Patrol gearbox

Specifications

Material: Aluminium
Adapter thickness: 25 mm
Transmission type: Manual / automatic, depending on configuration

Compatibility

BMW M57N / M57N2 engines:

M57TUD30 / 306D2 EU4 - 218 HP
M57TUD30 535d - 272 HP
M57T2D25 - 197 HP
M57T2D30 - 231 HP
M57N2 / 306D3 - 235 HP
M57N2 / 306D4
M57N2 / 306D5 - 286 HP

Nissan Patrol gearboxes:

Nissan Patrol Y61 3.0 Di (ZD30DDTi) - ZD30 manual gearbox
Nissan Patrol Y61 4.2D (TD42) - TD42 manual gearbox
Nissan Patrol Y61 3.0 Di (ZD30DDTi) - RE4R03A automatic gearbox

Important: This adapter is compatible only with BMW M57N / M57N2 flywheels featuring a 310 mm outer ring gear diameter. First-generation M57 flywheels with a 290 mm ring gear are not compatible because the starter motor cannot correctly engage the ring gear. Verify the ring gear diameter before ordering.

Important: This adapter is designed for the large BMW M57N / M57N2 bellhousing configuration. It is not compatible with first-generation M57 engines featuring the smaller bellhousing configuration. Verify the engine code before ordering.

Package Contents

1x Aluminium gearbox adapter plate
Gearbox adapter mounting bolts
Locating dowel pins
1x Clutch fork pivot pin PMC MOTORSPORT AS081.00.03

Installation

Flywheel and clutch configuration must be selected according to the engine and gearbox combination, respecting the ring gear diameter restriction
For the Nissan Patrol Y61 ZD30 RE4R03A automatic transmission, an additional PMC MOTORSPORT torque converter adapter is required
Depending on the vehicle, modifications to engine and gearbox mounts, firewall, transmission tunnel or driveshaft length may be required

Important: This adapter is not a complete conversion kit. The flywheel, clutch disc, pressure plate and release bearing must be selected for the complete transmission configuration. The components recommended below are alternatives for different setups and are not all required together.

Important: Intended for motorsport and track use only. The manufacturer specifies installation by professionals experienced in engine and transmission conversions, using appropriate workshop equipment.

Compatible Accessories

Flywheel

LuK dual-mass flywheel BMW 3.0d M57N - 310 mm ring gear

Clutch Discs

Pressure Plates
